Get Off My Lawn

Was the topic for PyWeek #8, and I proudly present "Spawnmower Lawn Defense".



It is a Tower Defense game implemented within a week. Python and Pygame was used.
To play Spawnmower, you need to download it here.

Black & White controls for Python

Do you remember the game Black and White and and its novel approach to UI control? The player used the mouse to draw gestures. These gestures were recognized by the game and controlled large parts of the game.

Inspired by an article published on GameDev.net, I reimplemented the stuff for single stroke gestures in Python. You can download the gestures class here. Additionally, you will need the Vector2D class published earlier. Both classes are well documented and I will publish some usage examples within the next days.

Build a Game within one Week

Sounds great, doesn't it?

If you like the idea, than you should register for PyWeek8.

You can either take part as team or individual, vote for one of five topics and after the theme for the challenge is announced, you have exactly one week to implement your game in Python.

Good Luck!

A Two Dimensional Vector For Python

To make the usage of PyGame easier I implemented a simple class for two dimensional vectors which can be downloaded here. It makes heavy usage of Python's operator overloading and metaobject protocol.

Please leave a comment and let me know what you think about it.

Collision Detection

Today I finished an example for collision detection in Pygame.

Pygame supports multiple methods for collision detection. The one presented in this tutorial will be pygame.sprite.spritecollide(sprite, group, dokill, collided = None). spritecollide gets a sprite and a group of sprites and returns a list of all sprites, which collides with the first sprite. Additionally you can define, if the collided sprites should be removed from the group or not. collided can be used to define the function, which should be used to decide, if two sprites collides. For more information you can take a look at Pygames documentation.

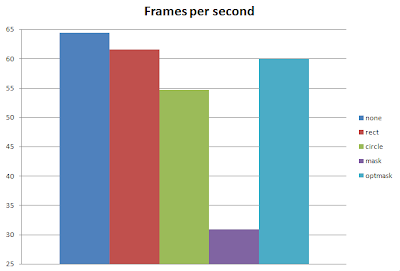

The interesting part in this demo is that the performance of the collision functions can be compared to each other. This is done by defining the collide parameter.


During the test we had 250 collision detection calls per frame.

It can be seen, that some functions are more expensive than others. It is up to you, to choose the best one.

"Hello Tank" in Pygame

To get some first impressions Pygame and how it can be used, I implemented "Hello Tank".

"Hello Tank" is a simple program which shows how Pygames main loop should work, how events can be handled and sprites can be moved. You can download the complete source and images here.

Let us start with some simple stuff: Image loading.

def load_image(imagefile):
try:
  image = pygame.image.load(imagefile)
except pygame.error:
  print "Cannot load image:" , imagefile
  raise SystemExit

return image

The function load_image gets the path to an image file and returns the loaded image, or raises SystemExit, if the image could not be loaded. Looks pretty simple, right?

After we are able to load images it is time to get to some more complex stuff to work. What we need is a movable tank!

class Tank(pygame.sprite.Sprite):
def __init__(self, position=(0,0)):
  pygame.sprite.Sprite.__init__(self)
  self.originalImage = load_image("tank.png")
  self.movement = [0,1]
  self.position = list(position)
  self.rotation = 0
  self.rotate_tank(0)

def update_position(self):
  self.rect = self.image.get_rect()
  self.rect.center = self.position

def update_movement_direction(self):
  self.movement[0] = -math.cos(
                       math.radians(self.rotation + 90)
                      )
  self.movement[1] =  math.sin(
                       math.radians(self.rotation + 90)
                      )

def rotate_tank(self, angle):
  self.rotation += angle
  self.image = pygame.transform.rotate(
                   self.originalImage, self.rotation
               )
  self.update_position()
  self.update_movement_direction()

def drive(self, speed):
  self.position[0] -= speed * self.movement[0]
  self.position[1] -= speed * self.movement[1]
  self.update_position()

What should I say, it is a tank. It can be created, rotated and driven. The movement direction is determined by the rotation. As you can see, the image is already rotated by 90 degrees. The tank inherits from pygame.sprite.Sprite. This is the base class for all visible objects in Pygame. Also we assign an image to our tank.

We now have a tank. But where can we test it?

class HelloTank(object):
def __init__(self):
  object.__init__(self)
  self.initialize_pygame()

  self.bgImage = load_image("background.png")
  self.tank = Tank((512, 320))

  self.leftArrow = False
  self.rightArrow = False
  self.upArrow = False
  self.downArrow = False

  self.drawableObjects = \
           pygame.sprite.RenderPlain(self.tank)

def initialize_pygame(self):
  pygame.init()

  self.window = \
           pygame.display.set_mode((1024,768))
  pygame.display.set_caption(
           "warofthepolygons.com - Hello Tank!"
  )

  self.screen = pygame.display.get_surface()
  self.clock = pygame.time.Clock()

def tick(self, clockrate=50):
  self.clock.tick(clockrate)

def handle_events(self):
  # get the events from pygames event queue
  events = pygame.event.get()

  # handle the events
  for event in events:
      # Return False, if the user closes the window.
      if event.type == pygame.QUIT:
          return False
      elif event.type == pygame.KEYDOWN:
          # Return False, if the user pressed Escape.
          if event.key == pygame.K_ESCAPE:
              return False
          elif event.key == pygame.K_UP:
              self.upArrow = True
          elif event.key == pygame.K_DOWN:
              self.downArrow = True
          # some more code here ...

  return True

def move_tank(self):
  """Here the tank will be rotated and driven."""

def run(self):
  # Run until self.handle_events
  # tells to close the demo
  while self.handle_events():
      # Draws the background
      self.screen.blit(self.bgImage, (0,0))

      # moves the tank into direction defined by
      # self.[up|down|left|right]Arrow
      self.move_tank()

      # updates all Sprites and draws them to the screen
      self.drawableObjects.update()
      self.drawableObjects.draw(self.screen)

      # flips the display buffers
      pygame.display.flip()

      self.tick()

As a last step we only need to create a HelloTank instance and let it run.

That's easy, isn't it?

What About Python?

Python is a platform independent and easy to learn programming language. So why don't we start with Python?

The first problem is, that I need to find an engine, which can be used for some game programming. I found some interesting information about Python game engines on arrowtheory.com.

Let's start with Pygame, game engine for 2D.

After this weekend I can probably tell a little bit more about it.

Welcome to War Of The Polygons!

What is this blog about?

I will present you game developing frameworks and the way you can use it to develop your own games. Also the developed games will be presented here, so stay tuned.
